Skin Temperature Screening Solution

FLIR EST™ Kiosk

Vai alla pagina di supporto

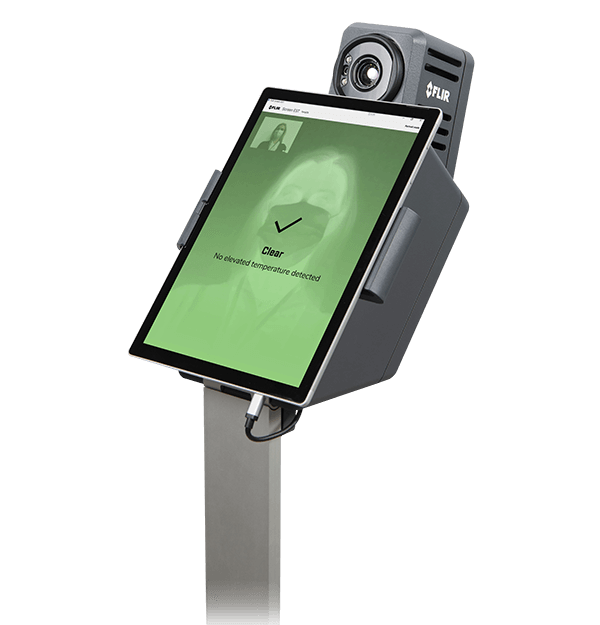

product image

Quickly screen passengers, customers, or employees for signs of elevated skin temperature with this turnkey solution. The FLIR EST Kiosk combines the temperature measurement capabilities of a thermal imaging camera plus FLIR Screen-EST™ software with the convenience of a tablet display and floor stand. This kiosk sets up in minutes, offering fully automated, self-service screening that targets the inner canthus (corner of the eye) for accurate skin temperature measurement.

Contatta le vendite

Faster, Easier Skin Temperature Screening

  • Easy Setup and Operation

    Ready to use right out of the box with pre-installed FLIR Screen-EST software, customizable instructions, and alert displays.

  • Efficient, Consistent Results

    Automatically targets the inner canthus for fast, accurate screening.

  • Accurate Temperature Screening

    Advanced factory calibration combined with relative measurement methodology ensures screening accuracy and avoids false-positives.

Contatta le vendite

Vuoi maggiori informazioni su questo prodotto?

Chiama +39 02 99 45 10 01 per parlare con uno specialista.

Specifiche
Generali
La confezione comprende
Camera, Surface® Pro7 tablet, tablet stand, cables (Europe, UK, US), screening position floor sticker (T131181), FLIR Screen-EST™ license card, printed documentation
Panoramica
Codifica
Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric
Dimensioni (L × P × A)
360 × 270 × 1300 mm (14 × 11 × 51.2 in)
Garanzia
http://www.flir.com/warranty/
Interfaccia web
Yes
Peso
8.3 kg (18 lb.)
Alimentazione
Alimentazione esterna
24/48 V DC 8 W max
Assorbimento
7.5 W at 24 V DC typical; 7.8 W at 48 V DC typical; 8.1 W at 48 V PoE typical
Connettore alimentazione
Camera: M12 12-pin A-coded, Male (shared with Digital I/O)
External Voltage
Allowed range 18–56 V DC
Connessioni e comunicazioni
Comunicazione Ethernet
TCP/IP socket-based FLIR proprietary
Ethernet
Control, result, image, and power
Ethernet standard
IEEE 802.3
Interfaccia Ethernet
Wired, Wi-Fi
Tipo connettore Ethernet
M12 8-pin X-coded, Female; RP-SMA, Female
Tipo Ethernet
1000 Mbps
Uscita digitale Utilizzo
As function of alarm, output to external device, for example when the screening alarm is triggered
Uscite digitali
3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC)
Wi-Fi
(optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc)‎ or infrastructure (network)‎
Imaging e ottiche
Banda spettrale
7.5–14 µm
Campo visivo (FOV)
24° × 18°
Distanza minima di messa a fuoco
0.15 m (0.49 ft)
Focal Plane Array (FPA)
Uncooled microbolometer
Frequenza immagine
30 Hz
Identificazione ottica
Automatic
Lunghezza focale
17 mm (0.67 in)
Messa a fuoco
One-shot contrast, motorized, manual
Miglioramento del contrasto
FSX® / Histogram equalization (IR only)
Miglioramento dell’immagine MSX
Yes (video streaming source 0)
numero f
1.3
Pitch sensore
17 µm
Risoluzione IR
464 × 348
Risoluzione spaziale (IFOV)
0.90 mrad/pixel
Risoluzioni streaming
Video stream 0 – 640 × 480 pixels; Video stream 1 – 1280 × 960 pixels; Radiometric stream – 464 × 348 pixels
Sensibilità termica/NETD
<40 mK at 30°C (86°F)
Sovrimpressione
Video stream 0 – With/Without; Video stream 1 – No
Video Streaming
Bit rate set through camera web
Misurazioni e analisi
Accuratezza
±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software
Range di temperature oggetto
15°C to 45°C (59°F to 113°F)
Other
Pixel Format
Video stream – YUV411; Radiometric stream – MONO 16
Radiometria
Image Source
Video stream 0 – visual / IR / MSX®; Video stream 1 – visual; Radiometric video stream – IR
